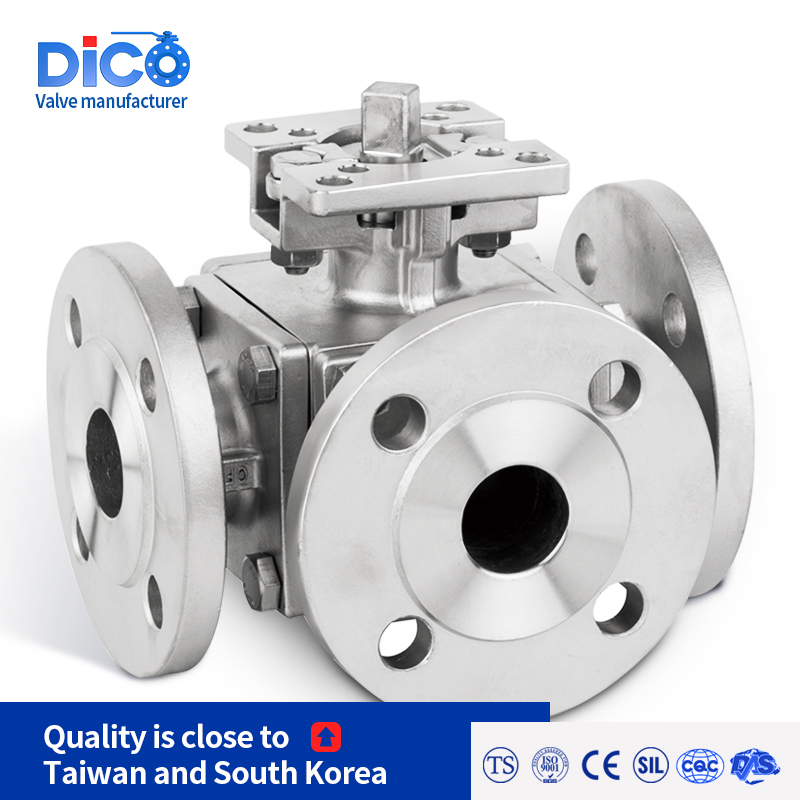

CF8/CF8m/Wcb T/L Port Three Way Flange Ball Valve

Basic Info

Model No.: Q44/45F

Product Description

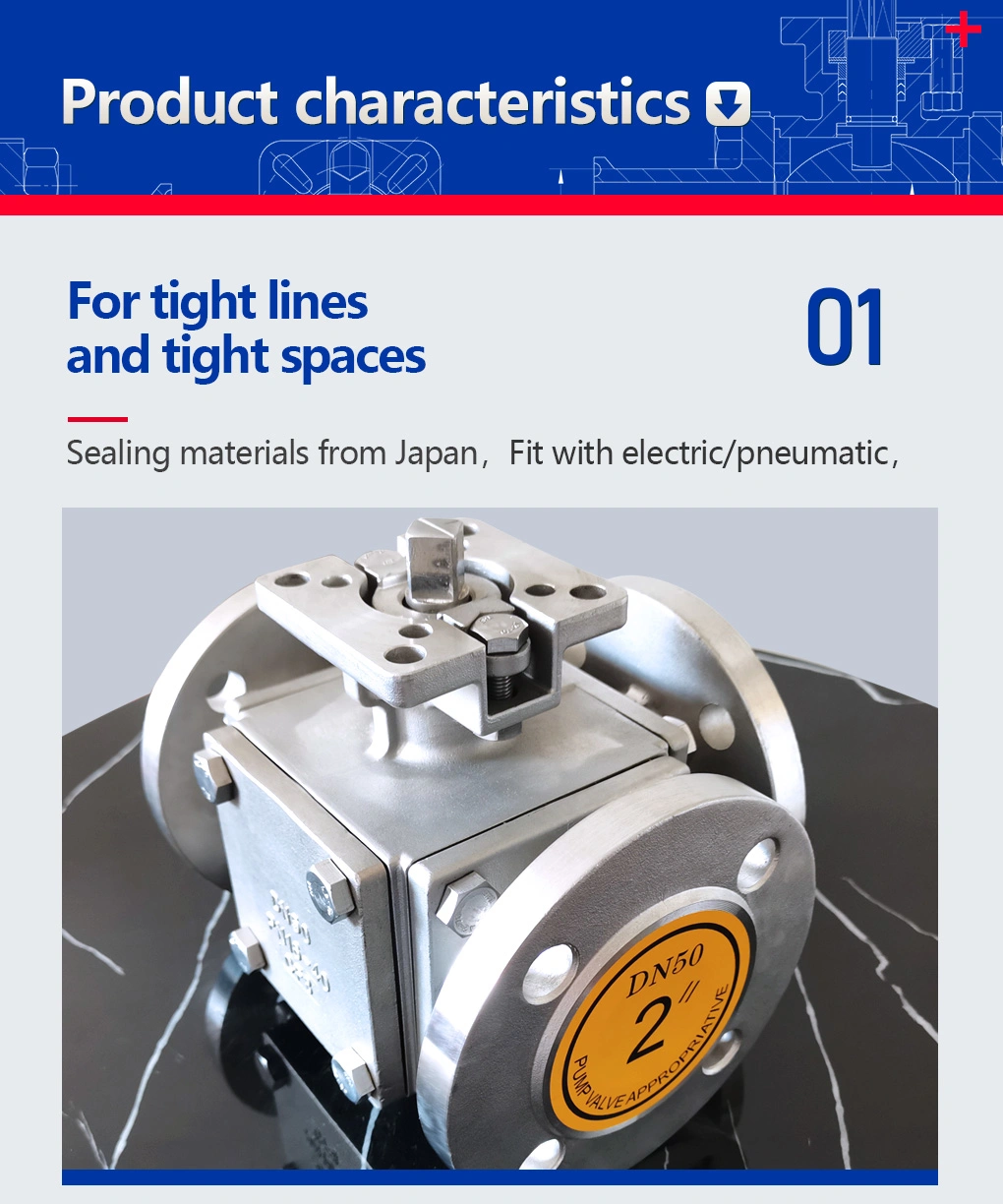

3way Flange Stainless Steel API Ball Valve with ISO5211 Mounting PadProduct Feature:


1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).

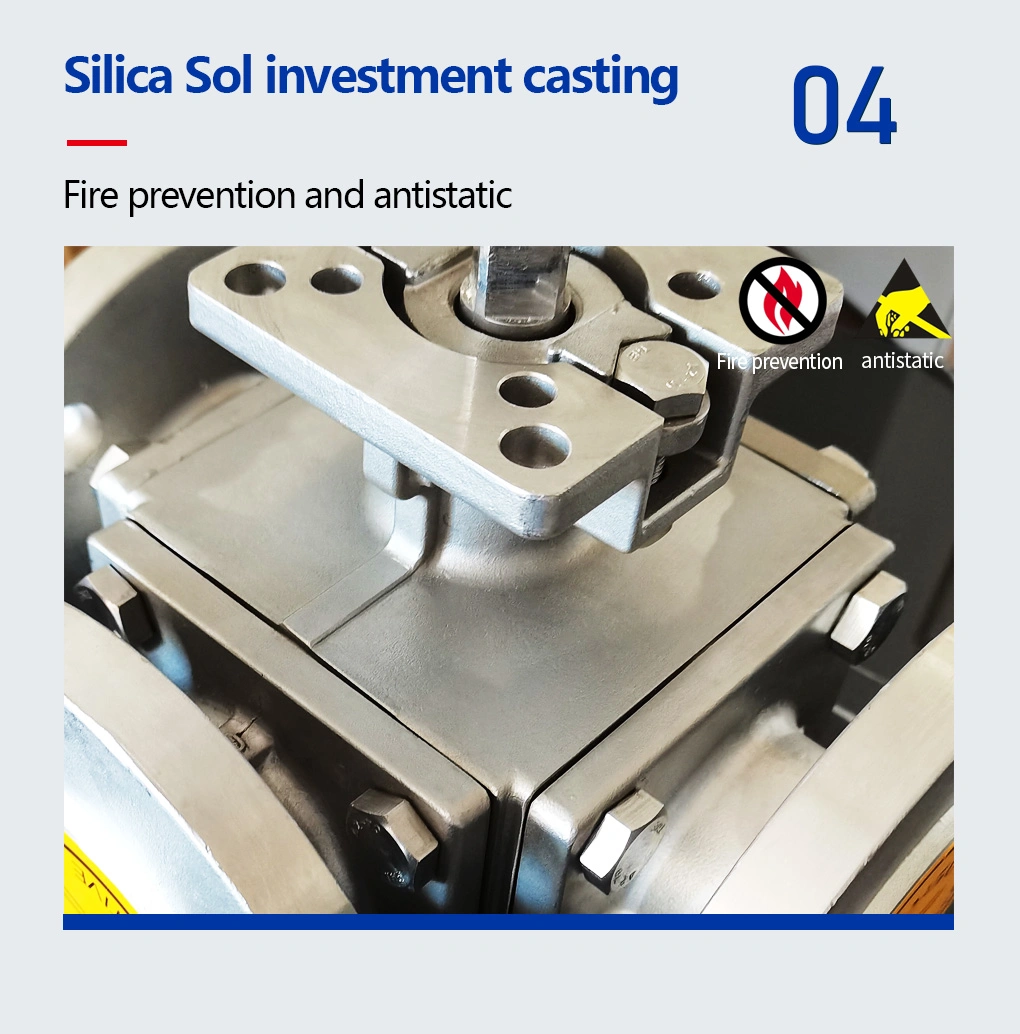

5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.




3 way ball valve


3 way ball valve
3 way ball valve
3 way ball valve
3 way ball valve
3 way ball valve
3 WAY BALL VALVE

3 WAY BALL VALVE






Product Name 3 way Stainless Steel Flange Ball Valve 150LB 300LB 600LB
1. Material A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size 1/2''~10'' ( DN15~DN250)
3. Certificate ISO9001 & CE
4. Port Full Port
5. Working Pressure 150LB~600LB
6. Connection Ends Flange(RF/RTJ)
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Steam, Oil and natural gas etc.
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598
Shipment
Delivery Time 15~30 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms EXW, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty 18 Months after leaving factory
Advantage OEM/ODM is applicable
Others We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer
